Heat exchangers are essential components in various industrial and commercial applications, facilitating the transfer of heat between two or more fluids. As technology has advanced, several types of heat exchangers have emerged, each with its own set of advantages and disadvantages. Among these, brazed heat exchangers and traditional plate heat exchangers are two popular options. This article will explore the differences between brazed heat exchangers and traditional plate heat exchangers, helping you determine which one is better suited for your specific needs.
The heat exchanger market has been experiencing steady growth in recent years, driven by the increasing demand for energy-efficient solutions across various industries. In 2022, the global heat exchanger market was valued at approximately USD 17.1 billion. The market is projected to reach USD 23.5 billion by 2030, growing at a compound annual growth rate (CAGR) of 4.0% from 2023 to 2030.
Several factors are contributing to the growth of the heat exchanger market. Firstly, the rising demand for energy-efficient solutions is driving the adoption of advanced heat exchangers in various applications. Secondly, the increasing focus on reducing carbon emissions and improving energy efficiency is propelling the market growth. Thirdly, the growing industrialization and urbanization in emerging economies are creating a significant demand for heat exchangers.
The heat exchanger market is segmented based on type, application, and region. In terms of type, the market is divided into shell and tube heat exchangers, air-cooled heat exchangers, and plate heat exchangers. Shell and tube heat exchangers are the most widely used type due to their high efficiency and reliability. Plate heat exchangers are gaining popularity due to their compact size and ease of maintenance.

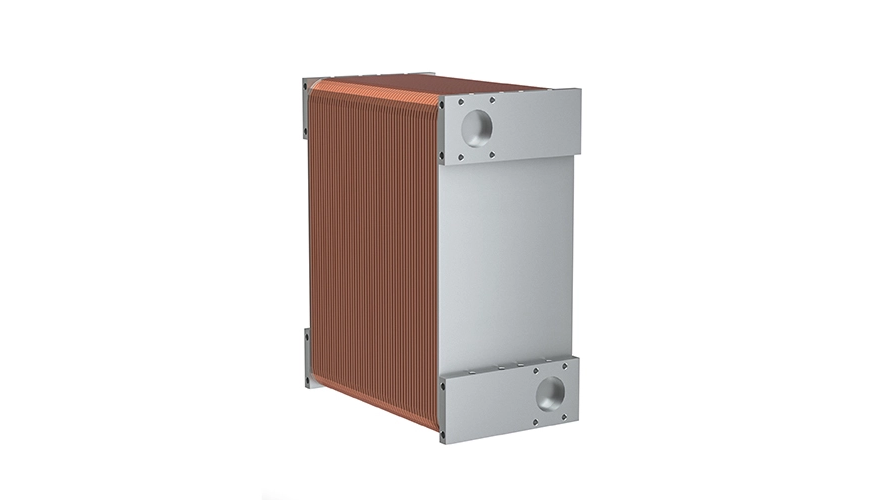

Brazed heat exchangers are a type of plate heat exchanger that uses brazing as a method of joining the plates. Brazing is a process that involves heating a filler metal, such as copper or nickel, to a temperature above its melting point but below the melting point of the base metals. The filler metal is then drawn into the joint by capillary action, forming a strong bond between the plates.
Brazed heat exchangers are known for their compact size and high efficiency. The plates are typically made of stainless steel, which provides excellent corrosion resistance. The brazing process creates a series of small channels between the plates, allowing for efficient heat transfer.
One of the main advantages of brazed heat exchangers is their ability to handle high pressure and temperature. The brazed joints are very strong and can withstand extreme conditions. This makes brazed heat exchangers suitable for a wide range of applications, including refrigeration, air conditioning, and industrial processes.
However, brazed heat exchangers also have some limitations. The brazing process can introduce stress into the plates, which can lead to cracking under certain conditions. Additionally, brazed heat exchangers are not suitable for applications that require frequent cleaning, as the plates cannot be easily separated.
Traditional plate heat exchangers consist of a series of thin, corrugated plates stacked together to form channels for the two fluids to flow through. The plates are typically made of stainless steel or other corrosion-resistant materials and are sealed together using gaskets. The gaskets create separate channels for each fluid, allowing them to flow in parallel and exchange heat without mixing.
Plate heat exchangers are known for their high efficiency and compact size. The large surface area provided by the plates allows for efficient heat transfer, while the compact design makes them suitable for applications with limited space. Plate heat exchangers are widely used in various industries, including HVAC, food and beverage, and chemical processing.
One of the main advantages of traditional plate heat exchangers is their ease of maintenance. The gaskets can be easily replaced, and the plates can be separated for cleaning or inspection. This makes plate heat exchangers suitable for applications that require frequent maintenance or cleaning.
However, traditional plate heat exchangers also have some limitations. The gaskets are susceptible to degradation over time, which can lead to leakage. Additionally, plate heat exchangers are not suitable for applications that require high pressure or temperature, as the gaskets may not be able to withstand these conditions.
Brazed heat exchangers offer several advantages over traditional plate heat exchangers, making them a popular choice for various applications. Some of the key advantages of brazed heat exchangers include:
Brazed heat exchangers are known for their compact size, which makes them suitable for applications with limited space. The brazed design eliminates the need for gaskets and allows for a more efficient use of space. This compact design also makes brazed heat exchangers easy to install and integrate into existing systems.
Brazed heat exchangers are highly efficient due to the small channels created by the brazing process. These channels allow for a large surface area for heat transfer, resulting in efficient heat exchange between the two fluids. The high efficiency of brazed heat exchangers also means that they can be used in applications with low flow rates or low temperature differences.
One of the main advantages of brazed heat exchangers is their ability to handle high pressure and temperature. The brazed joints are very strong and can withstand extreme conditions, making brazed heat exchangers suitable for a wide range of applications. This ability to handle high pressure and temperature also means that brazed heat exchangers can be used in applications that require high performance or reliability.
Brazed heat exchangers are typically made of stainless steel, which provides excellent corrosion resistance. This makes brazed heat exchangers suitable for use in harsh environments or with corrosive fluids. The corrosion resistance of brazed heat exchangers also means that they require less maintenance and have a longer service life compared to other types of heat exchangers.
Traditional plate heat exchangers also offer several advantages that make them a popular choice for various applications. Some of the key advantages of traditional plate heat exchangers include:
One of the main advantages of traditional plate heat exchangers is their ease of maintenance. The gaskets can be easily replaced, and the plates can be separated for cleaning or inspection. This makes plate heat exchangers suitable for applications that require frequent maintenance or cleaning.
Traditional plate heat exchangers are versatile and can be used in a wide range of applications. They are suitable for both heating and cooling applications and can be used with a variety of fluids, including water, oil, and steam. This versatility makes traditional plate heat exchangers a popular choice for various industries, including HVAC, food and beverage, and chemical processing.
Traditional plate heat exchangers are often more cost-effective than brazed heat exchangers, especially for applications that do not require high pressure or temperature. The gaskets and plates are relatively inexpensive to replace, and the initial cost of a plate heat exchanger is often lower than that of a brazed heat exchanger.
While brazed heat exchangers are known for their ability to handle high pressure and temperature, traditional plate heat exchangers are suitable for low-pressure applications. The gaskets used in plate heat exchangers are designed to withstand low pressure and temperature, making them suitable for applications such as heating and cooling in residential and commercial buildings.
In conclusion, both brazed heat exchangers and traditional plate heat exchangers have their own set of advantages and disadvantages. The choice between the two depends on various factors, including the specific application, pressure and temperature requirements, maintenance needs, and budget constraints. Brazed heat exchangers are suitable for applications that require high efficiency, compact size, and the ability to handle high pressure and temperature. Traditional plate heat exchangers are suitable for applications that require ease of maintenance, versatility, and cost-effectiveness.
Ultimately, the best choice depends on your specific needs and requirements. It is important to carefully consider all factors and consult with a qualified professional to determine which type of heat exchanger is best for your application.
