Plate heat exchangers are essential for transferring heat efficiently in industrial processes, HVAC systems, and food or chemical production. Over time, even well-maintained units can experience wear and tear. Components like gaskets, plates, bolts, and frames can degrade, leading to reduced efficiency, leaks, or even system failure. Recognizing the early signs that a plate heat exchanger needs spare parts is crucial for keeping operations smooth, reducing energy costs, and preventing unexpected downtime.
In this article, we will explore the five key signs your plate heat exchanger needs immediate spare parts replacement and provide practical advice on maintenance, troubleshooting, and solutions to maximize the life of your unit.

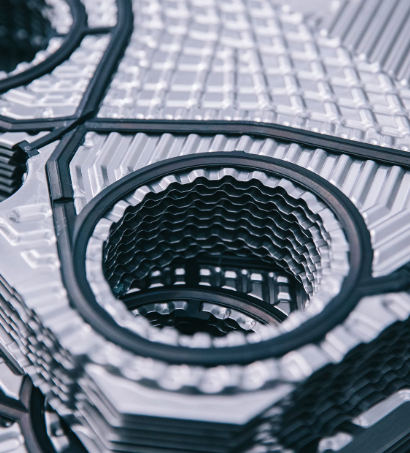

Before discussing failures, it’s helpful to understand what makes up a plate heat exchanger. PHEs are made of plates, gaskets, frame, bolts, and end plates. The plates carry heat efficiently between fluids. Gaskets seal the plates and prevent leaks. Frames and bolts hold everything together under pressure. End plates keep the assembly tight and stable.
Over time, these components wear. Gaskets can crack or lose elasticity. Plates may corrode, warp, or get fouled. Bolts may loosen due to vibration. Regular inspections help spot issues before they affect performance.
| Spare Part | Function | Typical Issues |
|---|---|---|
| Gasket | Seals plates, prevents leaks | Cracking, leaks, chemical degradation |
| Plate | Transfers heat between fluids | Fouling, corrosion, warping |
| Bolts & Frame | Maintain compression | Loosening, vibration damage |
| End Plate | Closes assembly | Misalignment, cracking |
Knowing these components is the first step to effective maintenance and timely spare parts replacement.
One of the first signs that a PHE needs attention is a sudden or gradual pressure drop between the inlet and outlet. PHEs rely on a steady flow to transfer heat efficiently. If the pressure drops too much, the system struggles to move fluids, reducing heat transfer.
Causes of Pressure Drop:
Plate fouling: Dirt, mineral deposits, biofilms, or chemical precipitates can clog flow channels.
Partially failed gaskets: Fluid may bypass channels, creating uneven flow.
Misaligned plates: Plates not properly compressed or seated reduce efficiency.
How to Diagnose:
Regularly monitor inlet and outlet pressures.
Inspect plates for visible buildup.
Measure flow rates and compare them to design specifications.
Solutions:
Minor fouling can often be removed with chemical or mechanical cleaning.
Replace gaskets if they are cracked, leaking, or deformed.
Replace plates if fouling, corrosion, or warping is severe.
Early detection prevents more serious failures and keeps the system running at optimal efficiency.
Heat exchangers are designed to move thermal energy efficiently. When they underperform, it’s often noticeable in outlet temperatures. Reduced heat transfer efficiency increases energy consumption and can slow production.
Symptoms:
Outlet temperature consistently lower than expected.
Process times longer than standard cycles.
Increased energy usage, as pumps and heaters work harder.
Causes:
Fouled or scaled plates: Deposits act as insulation.
Damaged gaskets: Allow bypassing, reducing the effective heat transfer area.
Corroded or warped plates: Compromise fluid flow and surface area.
Solutions:
Use chemical or high-pressure water cleaning to remove deposits.
Replace gaskets showing signs of wear, chemical attack, or improper compression.
In cases of plate warping or repeated fouling, replace plates or consider self-cleaning designs for long-term reliability.
Keeping heat transfer efficiency high reduces energy costs and extends system life.
Leaks are one of the most visible signs of PHE issues. Fluids may drip outside the exchanger, or worse, mix internally in what’s called a differential leak. Cross-contamination can damage processes or compromise product quality.
Signs of Leaks:
Drips forming at gasket edges.
Pressure fluctuations that can’t be explained by normal operation.
Unexpected mixing of fluids, leading to contamination.
Common Causes:
Gasket failure from chemical incompatibility, heat, or age.
Thermal stress or corrosion cracking plates.
Loose bolts or improper assembly causing gaps.
Actions to Take:
Remove and replace failed gaskets immediately.
Inspect adjacent plates for cracks or warping.
Ensure the assembly is properly tightened to avoid additional stress.
Tip: Having spare gaskets on hand allows quick replacement and minimizes downtime. Even temporarily operating without a plate may be possible if the system is tightened properly and monitored closely.
Repeated maintenance or repair cycles indicate a deeper issue. It may cost more than just replacing worn parts.
Indicators:
Gaskets replaced multiple times in short intervals.
Plates cleaned frequently but efficiency does not improve.
Pressure or temperature imbalances keep returning.
Solutions:
Compare costs: continuous minor repairs vs. timely spare parts replacement.
Keep a small inventory of critical gaskets and plates to reduce downtime.
Record maintenance history to detect patterns and predict failures.
| Scenario | Cost per Year | Downtime Impact |
|---|---|---|
| Recurrent minor repairs | $15,000 | 25 hours |
| Full gasket replacement | $8,000 | 5 hours |
| Plate replacement + gaskets | $20,000 | 8 hours |
Investing in spare parts can save both money and operational headaches in the long run.
Corrosion and mechanical wear are silent threats. They weaken plates, gaskets, and frames over time.
Visual Symptoms:
Pitted, discolored, or warped plates.
Loose bolts or distorted frames.
Cracks in plates or end plates.
Consequences:
Reduced heat transfer efficiency.
Leaks, contamination, or unexpected downtime.
Structural failure if unchecked.
Preventive Measures:
Select materials compatible with your fluids, like stainless steel, titanium, or specialized alloys.
Apply protective coatings or cathodic protection.
Inspect plates and gaskets regularly for early signs of corrosion or warping.
Monitor temperature fluctuations to prevent thermal stress.
To keep a plate heat exchanger performing efficiently, it’s essential to monitor key parameters frequently. Check pressures at both the inlet and outlet, track fluid temperatures, and measure flow rates consistently. Doing so allows you to spot early signs of performance loss, such as unusual pressure drops, temperature deviations, or reduced flow. Early detection helps prevent minor issues from escalating into major failures.
Heat transfer surfaces naturally accumulate deposits over time. Following a regular maintenance schedule for cleaning the plates is critical. You can use chemical cleaning to dissolve mineral deposits or fouling, mechanical methods such as brushing or high-pressure water jets, or automated cleaning systems for continuous operations. Keeping plates clean ensures maximum heat transfer efficiency and minimizes the stress on gaskets and other components.
Unexpected fluid leaks, unusual noises, or abnormal vibration patterns are often early indicators of gasket or plate issues. Leaks might appear at gasket seams or between plate joints, while vibration or rattling noises can signal loose bolts or misaligned plates. Continuous monitoring allows you to address these issues before they cause severe damage or downtime.
Having critical spare parts on hand is a practical strategy to reduce downtime. Gaskets, replacement plates, and essential bolts should be stocked according to system size and operating frequency. This preparation enables quick repairs when a leak or component failure occurs, keeping production running smoothly.
A: You should consider replacing spare parts if you notice reduced heat transfer efficiency, leaks, unusual pressure drops, or repeated maintenance issues.
A: Gaskets typically last 2–5 years depending on operating conditions, fluid compatibility, and temperature, but visual inspections can determine if earlier replacement is needed.
A: Yes, regular chemical or mechanical cleaning can restore performance, but severely fouled, warped, or corroded plates may require replacement.
A: Differential leaks are usually caused by gasket failure, thermal stress, plate cracks, or improper assembly, allowing fluids to mix internally.
Timely replacement of worn gaskets, plates, and other components ensures that your heat exchanger continues to operate efficiently, avoids costly downtime, and maintains safe processing conditions. Regular inspections, proper cleaning, and maintaining an inventory of Plate Heat Exchanger Spare Parts are the keys to long-term reliability.
