Brazed plate heat exchangers have become popular in many industries. They are compact, efficient, and can handle high-pressure applications. However, not all brazed plate heat exchangers are the same. There are several factors that one needs to consider when purchasing one. This article will explore the top factors to consider when purchasing a brazed plate heat exchanger.

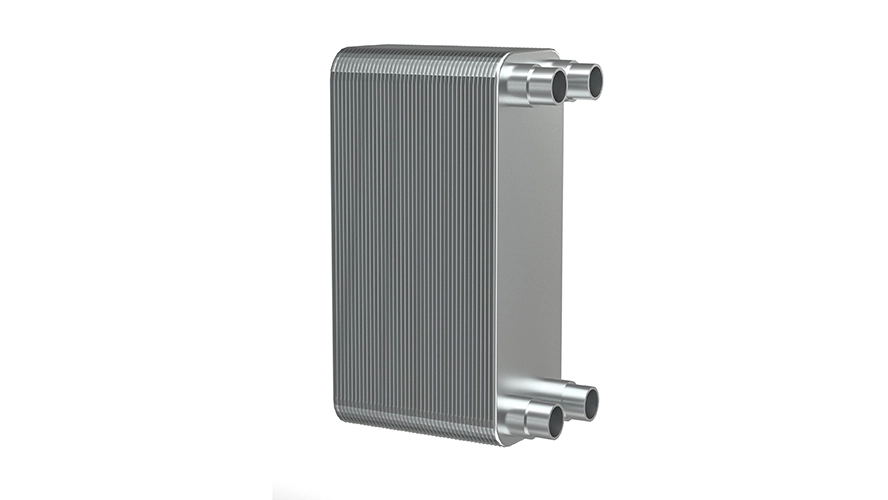

A brazed plate heat exchanger (BPHE) is a type of heat exchanger that uses thin metal plates to transfer heat between two fluids. The plates are brazed together in a vacuum furnace, creating a permanent bond that can withstand high temperatures and pressures. BPHEs are compact, efficient, and can handle a wide range of applications, from heating and cooling to refrigeration and industrial processes.
The brazed plate heat exchanger works by forcing the two fluids to flow through alternate channels created by the plates. The fluids are separated by thin metal plates, which transfer heat from one fluid to the other. The design of the plates creates turbulence in the fluids, increasing the surface area for heat transfer and improving the efficiency of the heat exchanger.
Brazed plate heat exchangers are used in a wide range of applications across various industries due to their high efficiency and compact design. Some common applications include:
HVAC Systems – BPHEs are widely used in heating, ventilation, and air conditioning (HVAC) systems to transfer heat efficiently in residential, commercial, and industrial buildings.
Refrigeration – These heat exchangers are used in refrigeration systems to improve energy efficiency by transferring heat between the refrigerant and other fluids.
Industrial Processes – BPHEs are employed in various industrial applications, such as chemical processing, power generation, and manufacturing, where heat transfer is required.
Renewable Energy Systems – They are used in solar thermal and geothermal systems to transfer heat between different working fluids efficiently.
Oil and Gas Industry – BPHEs are utilized in cooling and heating applications within the oil and gas industry, including lubricant and fuel preheating.
Food and Beverage Processing – They play a role in pasteurization, cooling, and heating processes in food and beverage manufacturing.
Brazed plate heat exchangers offer several advantages over other types of heat exchangers, making them a preferred choice in many industries:
High Efficiency – The plate design increases the surface area for heat transfer, ensuring maximum efficiency and rapid temperature changes.
Compact Design – BPHEs are much smaller and lighter than traditional shell-and-tube heat exchangers, saving space in installations.
Durability and Reliability – The brazing process creates a strong, leak-resistant bond that can withstand high pressures and temperatures, ensuring long-term reliability.
Low Maintenance – With no gaskets or moving parts, BPHEs require minimal maintenance and have a longer operational life.
Cost-Effectiveness – Their high efficiency and durability contribute to lower energy consumption and operational costs over time.
Versatility – BPHEs can be used with a wide range of fluids, including water, oil, refrigerants, and glycol, making them suitable for diverse applications.
By understanding these benefits, businesses can make informed decisions when selecting a brazed plate heat exchanger for their specific needs.
When purchasing a brazed plate heat exchanger, there are several factors that one needs to consider. They include:
The first factor to consider is the application. BPHEs are used in a wide range of applications, from heating and cooling to refrigeration and industrial processes. Each application has its own specific requirements, such as temperature, pressure, and flow rate. It is important to choose a BPHE that is designed for your specific application to ensure optimal performance and efficiency.
The size of the brazed plate heat exchanger is another important factor to consider. BPHEs are available in a range of sizes, from small to large. The size of the heat exchanger you need will depend on the specific application and the amount of heat transfer required. A smaller BPHE may be sufficient for a simple heating or cooling application, while a larger one may be needed for a more complex industrial process.
The material of the brazed plate heat exchanger is also an important consideration. BPHEs are typically made of stainless steel, copper, or nickel. Each material has its own specific properties, such as corrosion resistance, thermal conductivity, and compatibility with different fluids. It is important to choose a material that is compatible with the fluids being used in the application to ensure optimal performance and longevity.
The pressure drop across the brazed plate heat exchanger is another important factor to consider. BPHEs are designed to create turbulence in the fluids, which increases the surface area for heat transfer and improves the efficiency of the heat exchanger. However, this turbulence also creates a pressure drop, which can affect the performance of the system. It is important to choose a BPHE with a pressure drop that is acceptable for your specific application.
The connection type of the brazed plate heat exchanger is also an important consideration. BPHEs are available with a range of connection types, including threaded, flanged, and soldered. The connection type you need will depend on the specific application and the type of piping being used. It is important to choose a BPHE with a connection type that is compatible with your system to ensure proper installation and operation.
Brazed plate heat exchangers are a popular choice for a wide range of applications due to their compact size, high efficiency, and ability to handle high temperatures and pressures. However, it is important to consider several factors when purchasing a BPHE, including the application, size, material, pressure drop, and connection type. By taking these factors into account, you can ensure that you choose a BPHE that is optimal for your specific application and will provide reliable, efficient performance for years to come.
