Plate heat exchangers (PHEs) are widely used in a variety of industries due to their efficiency, compact design, and high heat transfer capacity. Whether used in food processing, chemical industries, HVAC systems, or even power generation, the performance of a plate heat exchanger is crucial to the overall system’s efficiency. One of the key considerations when selecting a plate heat exchanger is its maximum operating temperature. This article explores the maximum temperature limits for plate heat exchangers, the factors influencing these limits, and how to ensure safe and optimal operation.

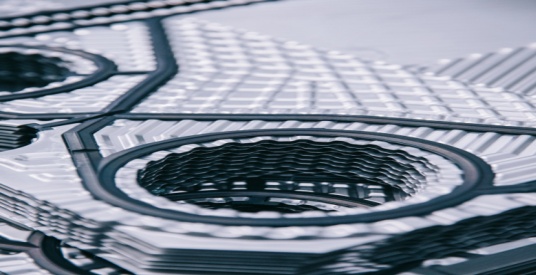

A plate heat exchanger consists of multiple thin plates stacked together with small gaps in between. The hot and cold fluids flow through alternate channels formed by these plates. The heat is transferred from the hot fluid to the cold fluid through the metal plates, which allow thermal conduction but prevent the fluids from mixing. This design allows for high heat transfer efficiency with a compact footprint, making it ideal for applications where space is limited or a large heat exchange area is needed.
Plate heat exchangers are designed to handle different temperature ranges depending on the materials used for the plates and gaskets, as well as the overall design. Below are some of the key factors that influence the maximum temperature that a plate heat exchanger can handle:
The material of the plates in a heat exchanger is one of the most significant factors determining its maximum operating temperature. The plates are in direct contact with the fluids being processed, so their material must be durable enough to withstand thermal stresses without compromising the integrity of the exchanger.
Common materials used for plates in heat exchangers include stainless steel, titanium, and various alloys:
Stainless Steel: This is the most commonly used material for heat exchangers, offering a balance of strength, corrosion resistance, and cost-effectiveness. Stainless steel plates are generally rated to handle temperatures up to 300°C (572°F). However, higher temperatures may compromise the material's strength over time, particularly in aggressive or corrosive environments.
Titanium: For applications involving high temperatures and more aggressive fluids, titanium is an excellent choice due to its corrosion resistance and ability to handle temperatures up to 500°C (932°F). It’s especially effective in seawater desalination and other high-temperature chemical processes.
Alloy Materials (Hastelloy, Inconel): For the most extreme high-temperature applications, alloys such as Hastelloy or Inconel are used. These materials can withstand temperatures up to 1000°C (1832°F) or higher, offering unparalleled resistance to corrosion and heat. These alloys are typically used in highly specialized or demanding applications, such as nuclear power plants or chemical reactors.
In addition to the plates themselves, the gaskets used to seal the plates and prevent fluid leakage are critical for determining the temperature limits of the heat exchanger. Gaskets are made from various elastomers and materials, each with a different thermal resistance.
Nitrile Rubber (NBR): This is the most common gasket material, which is suitable for standard applications where the temperature does not exceed 120°C (248°F). Nitrile gaskets are often used in industries where fluid temperatures are moderate and don’t pose a high risk of degradation.
EPDM (Ethylene Propylene Diene Monomer): EPDM gaskets are commonly used in heat exchangers for temperatures up to 150°C (302°F). They offer superior resistance to water, steam, and certain chemicals, making them ideal for food processing and pharmaceutical applications.
PTFE (Teflon): For higher temperature operations, PTFE gaskets are used, as they can withstand temperatures up to 250°C (482°F) or more. PTFE is chemically inert and provides excellent sealing capabilities, especially in high-pressure and high-temperature systems.
The type of fluid passing through the heat exchanger also influences the temperature limits. For instance, hot water or steam can typically reach higher temperatures than other liquids, but the temperature should be carefully monitored to avoid damage to the heat exchanger. In some applications, fluids may need to be preheated or cooled to ensure the temperature remains within a safe range for the heat exchanger.
High temperatures in combination with high pressure or high flow rates can significantly increase the risk of structural failure or leaks. Pressure and flow rates often dictate the design and material choice of the heat exchanger.
Pressure: The pressure at which the fluids are maintained directly impacts the heat exchanger's temperature limits. High-pressure steam, for example, can reach much higher temperatures than low-pressure systems. As pressure increases, the heat exchanger's design must account for the increased thermal and mechanical stresses that result.
Flow Rates: The flow rate of the fluids through the heat exchanger is another key factor. Higher flow rates can increase the heat transfer efficiency but may also contribute to higher temperatures if not properly managed. Therefore, the heat exchanger must be designed to accommodate the thermal expansion and contraction caused by varying flow rates.
Here’s a breakdown of the typical maximum temperature limits for plate heat exchangers based on materials and applications:
Plate Material | Max Temperature (°C / °F) | |
Stainless Steel | 200°C / 392°F | |
Titanium | 250°C / 482°F | |
Hastelloy | 300°C / 572°F | |
Gasket Material | Max Temperature (°C / °F) | |
Nitrile (NBR) | 120°C / 248°F | |
EPDM | 150°C / 302°F | |
Viton (FKM) | 200°C / 392°F | |
Application Type | Max Temperature (°C / °F) | |
Standard Applications | 150°C / 302°F | |
High-Temperature Applications | 250°C / 482°F | |
Specialty Applications | Up to 300°C / 572°F |
The typical maximum temperature for plate heat exchangers depends on the materials used and the design specifications. Generally, the following ranges can be expected:
Standard stainless steel plate heat exchangers: Up to 180°C (356°F) for most applications.
Titanium plate heat exchangers: Up to 300°C (572°F) for certain types.
Specialty alloys (e.g., Hastelloy, Inconel): Up to 500°C (932°F) or higher.
These temperatures are the typical operational limits, but it’s important to check with the manufacturer’s specifications to determine the exact limits for your specific unit.
Understanding the maximum temperature for plate heat exchangers is crucial for several reasons:
Preventing Damage: Exceeding the temperature limit of a plate heat exchanger can lead to gasket failure, plate warping, and leakage, all of which can result in expensive repairs or replacements.
Maintaining Efficiency: Heat exchangers operate most efficiently within a specific temperature range. Exceeding this range can decrease the overall efficiency of the system.
Safety Considerations: In industries like food processing or pharmaceuticals, maintaining proper temperature control is essential for both product quality and safety.
If your application requires operating temperatures higher than those supported by standard plate heat exchangers, there are a few options to consider:
Use a Multi-Stage System: You can use multiple heat exchangers in series to gradually bring fluids to the desired temperature. This is a common approach in processes involving very high temperatures.
Select a Heat Exchanger with Enhanced Materials: Choose plate heat exchangers made from high-temperature resistant alloys or materials specifically designed to withstand higher thermal stresses.
Alternative Heat Exchanger Types: If a plate heat exchanger is not suitable, you might consider using shell-and-tube heat exchangers or air-cooled heat exchangers that can handle higher temperatures.
Plate heat exchangers are efficient and versatile solutions for many industrial applications. However, understanding their maximum temperature limits is essential to ensure safe and optimal performance. By carefully considering the materials used, the properties of the fluids involved, and the specific requirements of your system, you can choose the right plate heat exchanger for your needs.
To learn more about high-temperature plate heat exchangers and explore various options available for your application, please contact Jiangsu Yuanzhuo Equipment Manufacturing Co., Ltd., where our experts can guide you in selecting the best solution for your system.
1. What is the typical maximum temperature for a plate heat exchanger?
The typical maximum temperature is around 180°C (356°F) for standard stainless steel models. Titanium or specialty alloys can handle up to 500°C (932°F).
2. Can plate heat exchangers handle high-pressure steam?
Yes, but specialized designs and materials are often required to handle high-pressure steam, as high pressure combined with high temperatures can stress the system.
3. How do I prevent damage from overheating?
Ensure that the plate heat exchanger operates within its specified temperature range. For applications involving high temperatures, use heat exchangers made from high-temperature resistant materials.
4. What materials are best for high-temperature applications?
Materials such as titanium, Hastelloy, or Inconel are suitable for high-temperature applications, providing better resistance to both high temperatures and corrosion.
